Data security

In KAWA, securing the data can be done both at row (Row level Security) and column (Column level Security) level. This is always done at the data source level.

In order to configure security on data sources, users must either own them or have the ‘Manage row level and column level security’ permission and be granted write access on the data source.

1 Column level security

Column level associates to one column in a data source a set of rules to limit access to that column.

⚡ Important: If one of the below condition is matched, the user will BYPASS the column level security and see the entire dataset regardless of what is configured: User OWNS the data source, User is an application ADMIN, or User has the ` Access restricted data and restricted data providers` workspace flag.

A rule targets a given Audience (Teams or individual users), and has a particular action:

  • Completely hides the column
  • Obfuscate the column’s values (one way hash that makes the value impossible to read but preserves the repartition)
  • Keeps the value unaltered

If a user is targeted by more than one rule, the most restrictive applies.

HIDES is more restrictive than OBFUSCATES is more restrictive than SHOW

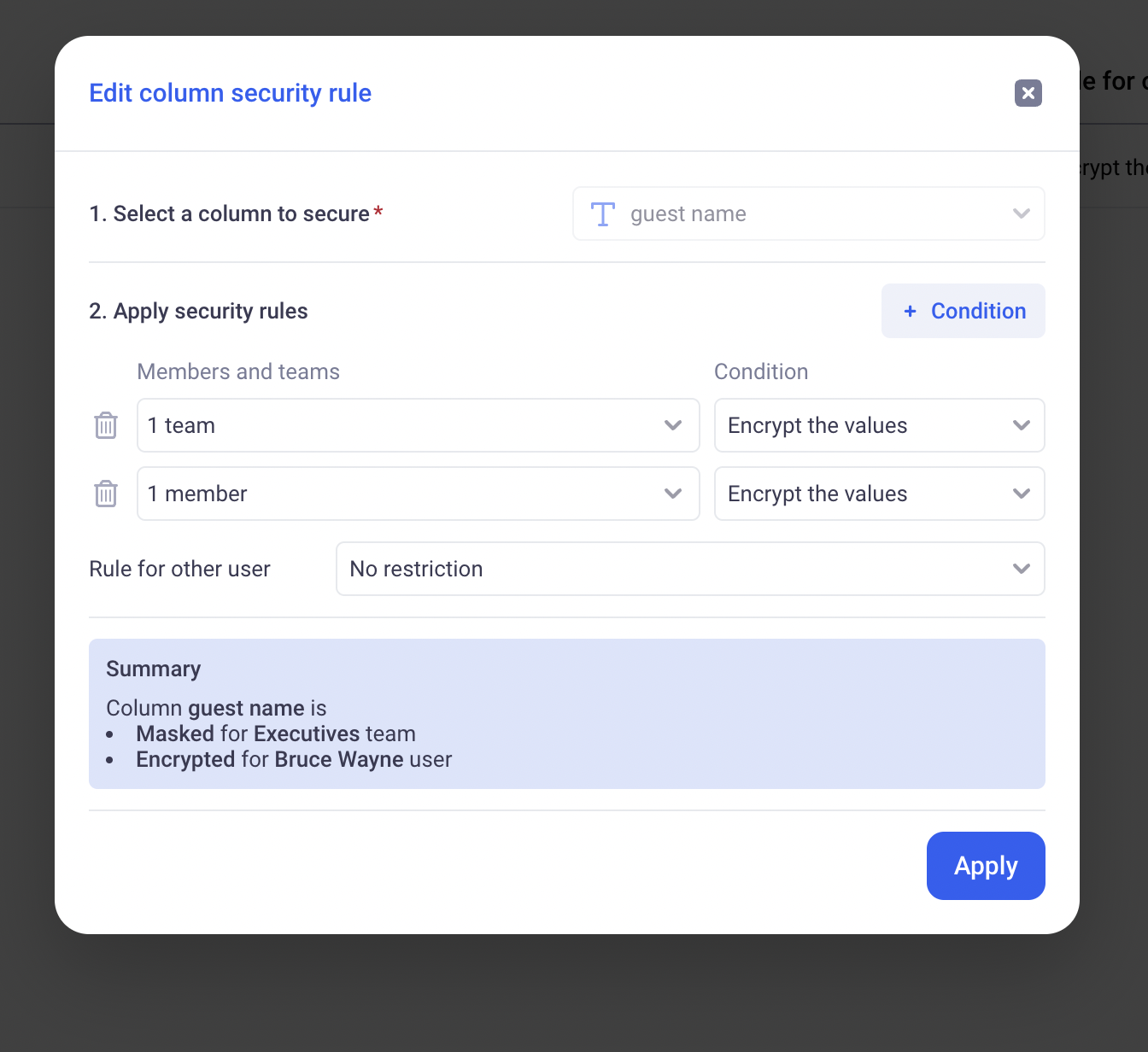

column level security

2 Row level security

Row level security will filter the rows of a given data source based on a set of rules.

⚡ Important: If one of the below condition is matched, the user will BYPASS the row level security and see the entire dataset regardless of what is configured: User OWNS the data source, User is an application ADMIN, or User has the ` Access restricted data and restricted data providers` workspace flag.

a. Security Mapping

Those rules will be defined as a mapping between user or team names and particular values for dimensions.

For example:

Team Name Country
Thunderbolts USA
Samurai Warriors Japan
Desert Falcons UAE
Nordic Vikings Sweden
Nordic Vikings Finland
Amazon Jaguars Brazil

In the above table (called: Security Mapping), all users members of the Thunderbolts team will be allowed to see only the row in the data source whose country is USA. The secured dimension here is the Country.

Security mappings support special values:

  • #MATCH_MANY_TOKEN# :If a user or team is assigned that value, they can see all elements of the secured dimension.

  • #BLANK_VALUE_TOKEN# :If a user or team is assigned that value, they can see all elements with a blank value for the secured dimension.

For example:

Team Name Country
Thunderbolts #MATCH_MANY_TOKEN#
Nordic Vikings Sweden
Nordic Vikings Finland
Nordic Vikings #BLANK_VALUE_TOKEN#
#MATCH_MANY_TOKEN# Belgium

In the above table, Thunderbolts can see all Countries (including blank Countries). Nordic vikings can see: Sweden, Finland and rows without Countries. All users can see: Belgium, including the Nordic vikings.

The mapping between user or team identification is saved in a special data source called: Access Table.

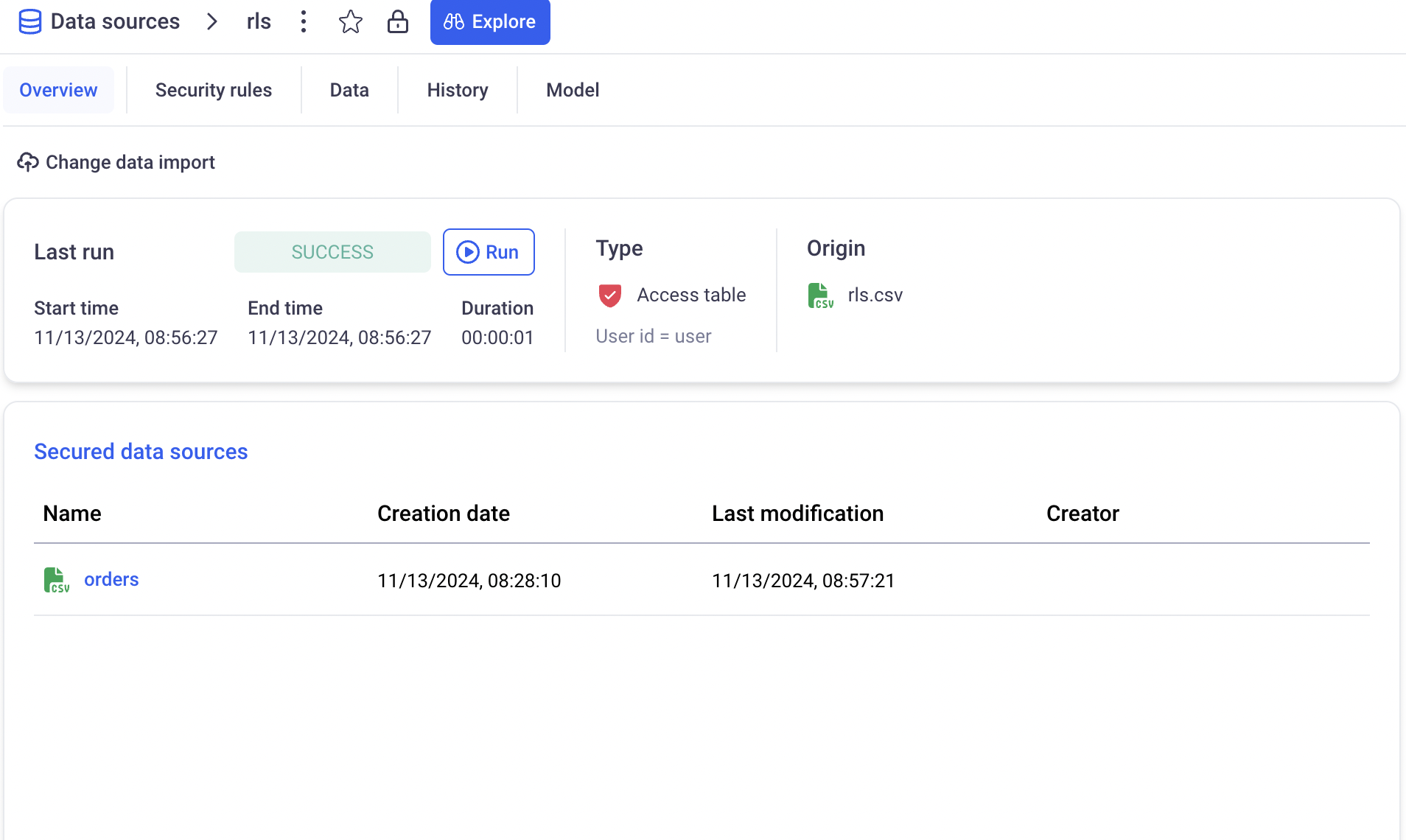

access table

This type of data source behaves like a normal data source. It can be connected to external systems, CSV files etc…

Access Tables require the ‘Manage row level and column level security’ to be created.

In addition to the normal data source configuration, Access Tables require its creator to explicitly designate which column contains a user identifier (which can be user ids or security team security names).

b. Security Rules

Security rules allow to define how a Security Mapping will be applied to a data source to secure it.

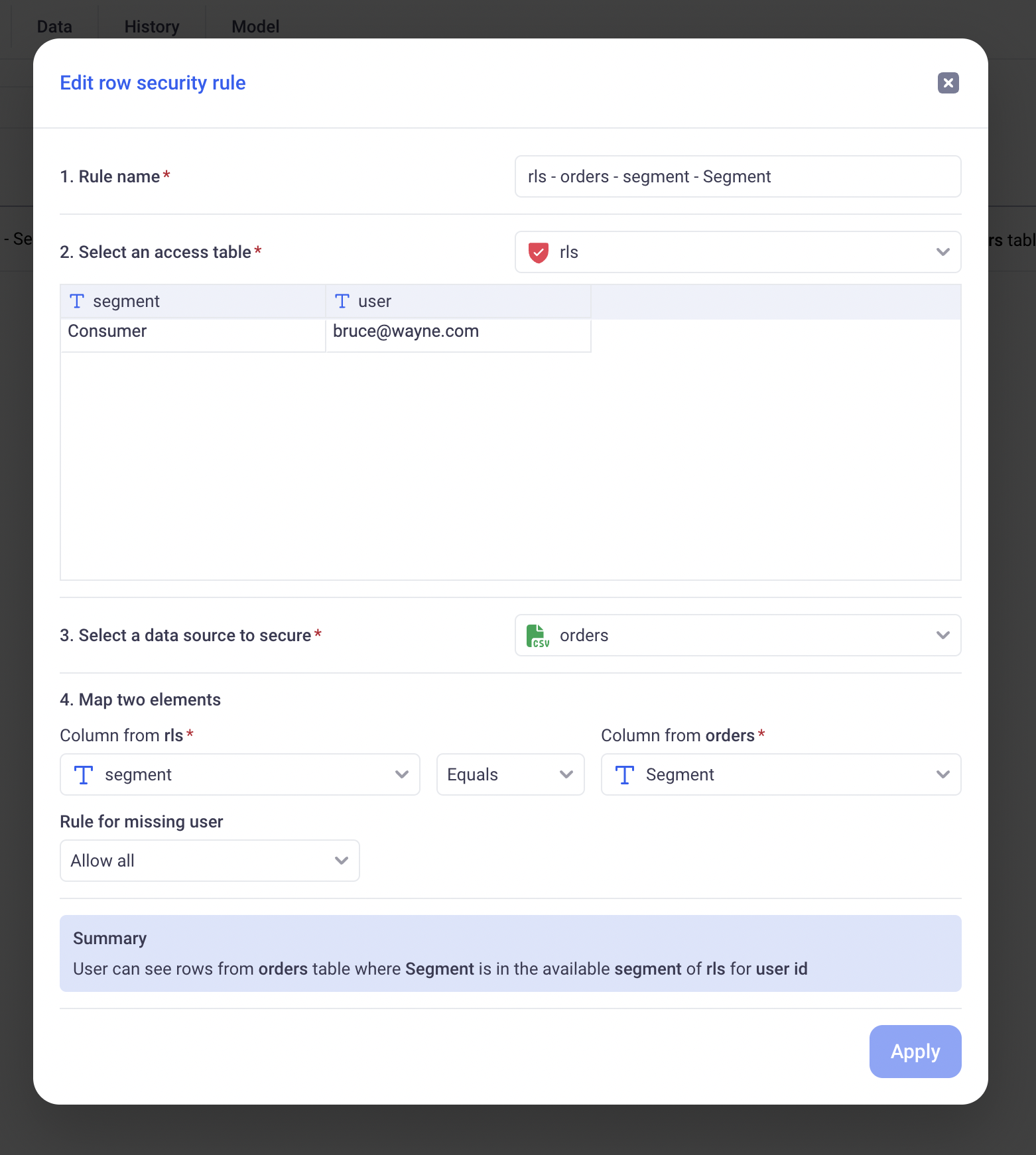

rls rule

Section by section on the above screenshot:

  • Section 1: The name of the rule itself
  • Section 2: The access table to use for that rule
  • Section 3: The data source whose access we want to restrict
  • Section 4: The dimension to secure (Above: we are securing Segment in the orders data source, matching it against the segment column in the security mapping)
  • Section 5: Defines what to do for users who are not present (directly or through a team) in the Security Mapping.

c. Global rule

The global rule of a data source is applied for a given user in case NO RLS rule applies for that user. It can be either: ALLOW ALL or DENY ALL.

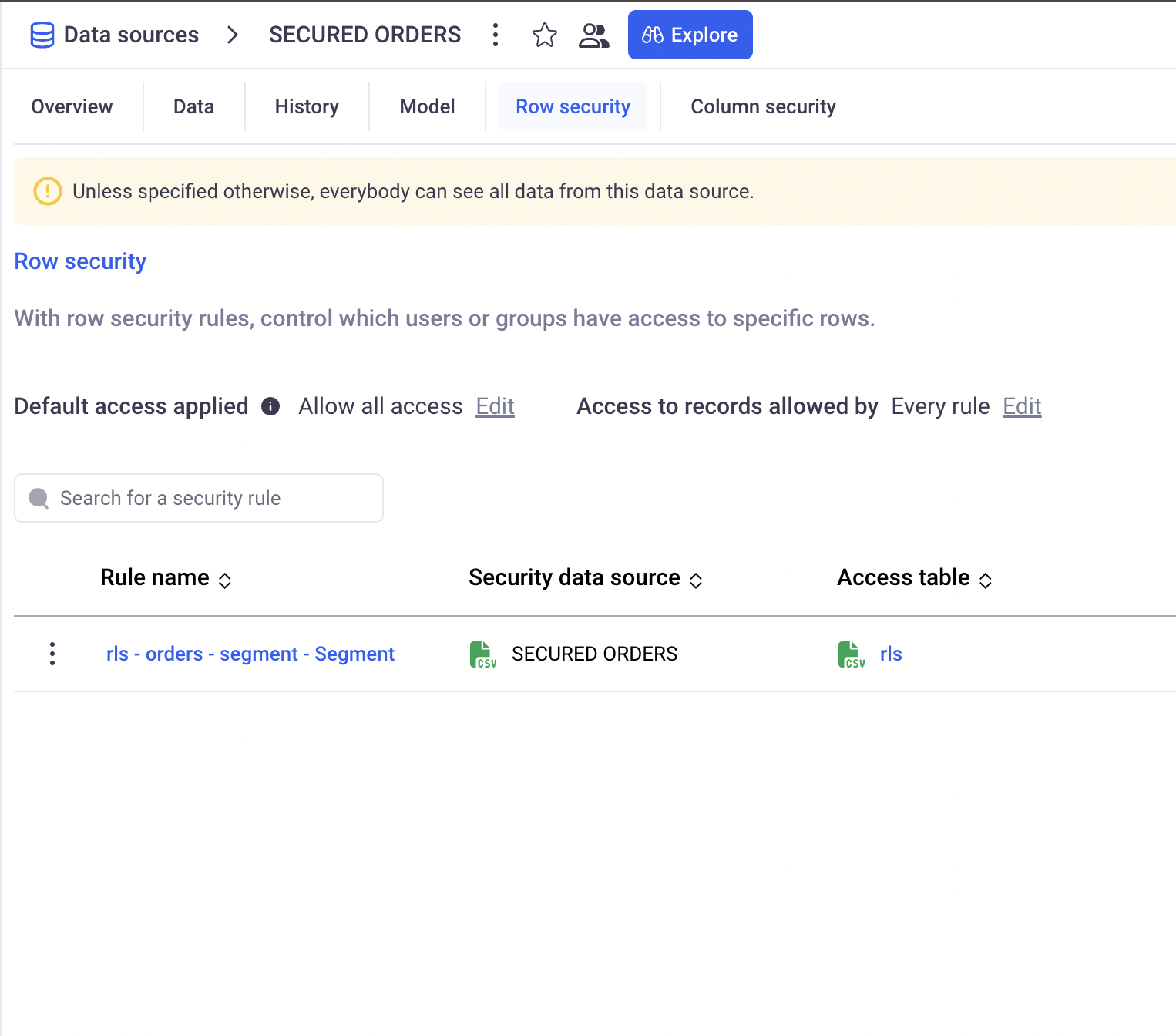

global rule

If at least one rule applies the user, then the Rule for missing user in each rule applies (Section 5 above)

d. Example

fig1: Access Table:

User Id Segment
bruce@wayne.com Consumer
bruce@wayne.com Enterprises
lucius@wayne.com #MATCH_MANY_TOKEN#


User id column is the user identifier: The user id (not the team name)

fig2: ata source to secure:

profit category
12 Consumer
34 Enterprises
56 R&D

Global Rule:

The Global rule is set to Deny All.

Rule:

  • Section 1: Segment control
  • Section 2: The Access Table in fig1
  • Section 3: The Data Source in fig2
  • Section 4: The category of the data source will be paired with the Segment of the access table.
  • Section 5: Deny All for users that are not in the access table.

Result:

  • User bruce@wayne.com will see row 1 and row 2 of the data source:
profit category
12 Consumer
34 Enterprises
  • User lucius@wayne.com will see the entire data source (#MATCH_MANY_TOKEN# is applied):
profit category
12 Consumer
34 Enterprises
56 R&D
  • All other users will be denied access to the data source (Global rule applies)
